BNR Advance

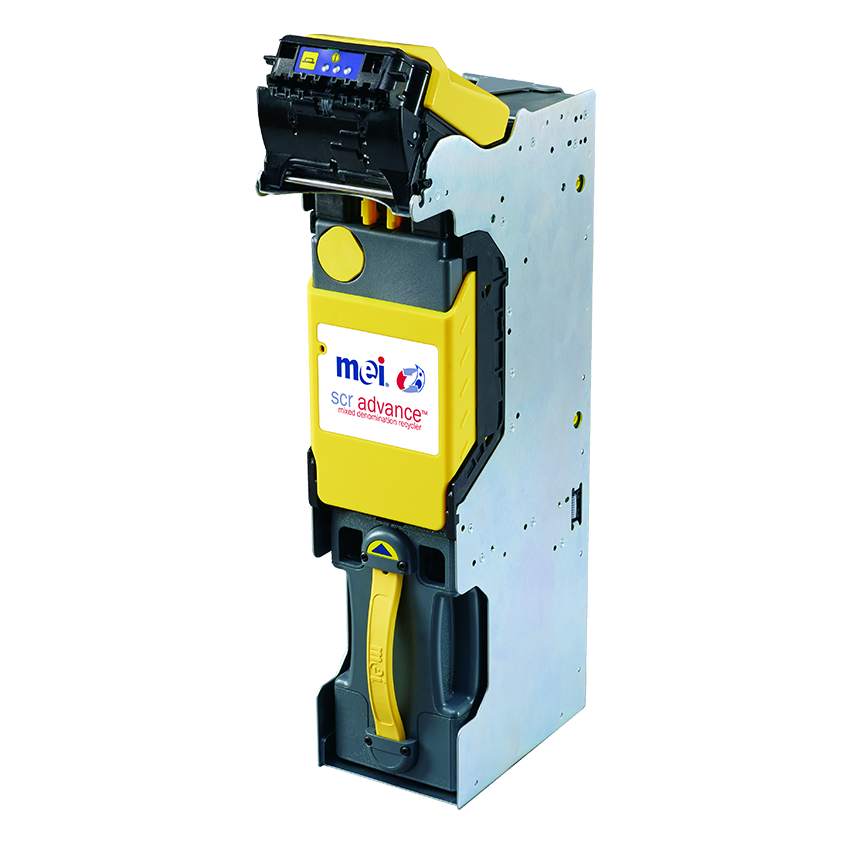

SCR Advance™ Banknote Recycler

MARKET-LEADING RELIABILITY AND PREMIUM FEATURES IN A COMPACT FOOTPRINT
The SCR Advance banknote recycler delivers a highly reliable and compact banknote recycling solution that provides an effi cient and affordable payment option. Making life more convenient for users while reducing downtime and increasing profi tability for operators, the SCR Advance banknote recycler presents an outstanding alternative to traditional cash payment solutions.
Over 2m SC Series sold globally

  • Up to 4 denomination recycling*
  • Multi-note or Single-note escrow variants
  • SC Advance™ acceptor head with anti-skew
  • Facilitates ADA / DDA compliance
  • Shortened transaction time
  • Lowest total cost of ownership
  • Delivers robust accounting
  • Maintenance-friendly
  • Maximized machine uptime / throughput
The superior jam performance of the SCR Advance banknote recycler ensures lowest total cost of ownership for the operator

Gallery

SPECIFICATION BENEFIT

Dimensions (Height) 489 mm (SCR) / 525 mm (SCNRL)
Width 114 mm
Depth 236 mm
Weight 7.57 kg
Denominations Recycled Up to 4*. 2 x 60 note recycling drums
Multi-note Escrow Configurable using recyclers
Cashbox Capacity 600 notes / 1,200 notes
Payout Single note
Operating Environment 0°C to +60°C (+32°F to +140°F), Inside host machine
Inlet Width Up to 83 mm. Universal – fits all accepted notes
Power Supply Voltage 6 Amp max, 24 Volts DC -10% +20%
Interface RS232 / USB**
Protocol REBDS. Various Software Development Kits available
Software Updates Fast remote software updates for note sets and firmware***

KEY BENEFITS OF THE SCR ADVANCE BANKNOTE RECYCLER:

ACCEPTOR HEAD

  • Single note-in note-out consumer zone is ADA / DDA compliant
  • Fast, anti-skew banknote insertion speed shortens transaction time
  • Consistently high first-time acceptance rate raises confidence in system
  • Multi-note escrow is simple to implement and manage

RECYCLING MODULE

  • Spiral drum recycling technology suitable for universal currency and street-quality notes
  • Two independent drums for compact recycling of up to 4 denominations*
  • Extra security with “Door Open” detection for when the unit has been opened, even when powered down
  • Lockable recycling module provides extra security

CASHBOX

  • 600 / 1,200 street-quality note capacity aligned to operational realities
  • Lockable to prevent access from unauthorized persons
  • Compatibility with entire SC field base has potential to reduce overall upgrade costs
