BNR Advance

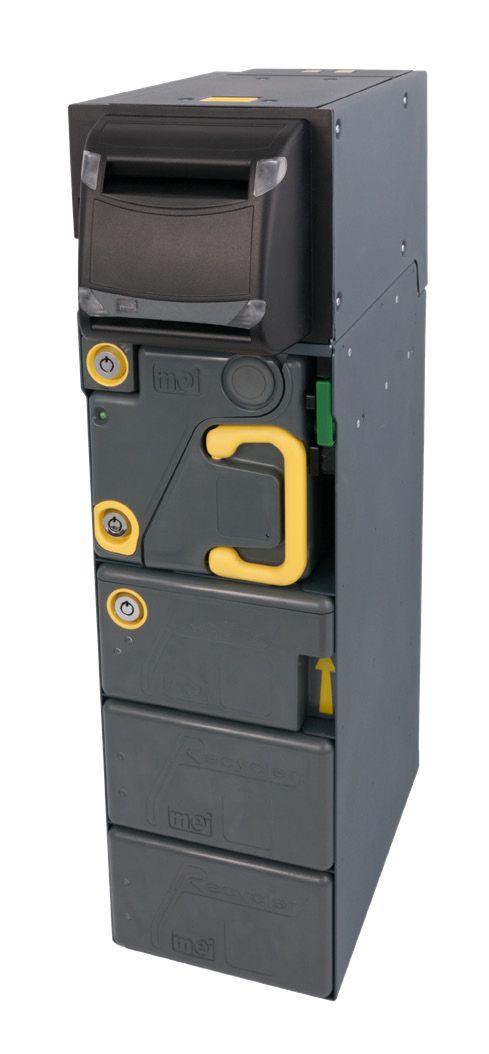

BNR Advance™ Banknote Recycler
The BNR Advance offers a secure, reliable, modular and compact banknote recycling solution.
With its robust build and unmatched reliability, it has a proven track record in applications as diverse as self-checkout, retail payment, financial services and transport markets.
The BNR Advance consistently delivers a positive return on investment in under one year.
Funzioni:
- Improved BNR Advance Main Module reduces maintenance costs in all types of locations, especially when used in harsh environments
- Up to 4 denomination recycling
- Shorter queues and ADA/DDA compliant
- Ideal for harsh environments
- Simulation tool for optimal investment
- Upgradeable to protect investment
- Proactive software for ongoing servicing
- Maximize lifetime and minimize cost
SPECIFICATION BENEFIT
| Height | 505 mm / 604 mm |
|---|---|
| Width | 165 mm |
| Depth (with flush bezel) | 275 mm |
| Weight (with flush bezel) | 16.9 kg - up to 25.7 kg |
| Denominations recycled | Up to 4, 30 & 60 note capacity |
| Multi-note escrow | 15 notes |
| Optional loader cassette | Yes |
| Cashbox capacities | 600 / 1,400 notes |
| Payout | Up to 15 note bundle |
| Operating environment | 0°C to +60°C (+32°F to +140°F), inside host machine |
| Inlet width | Up to 83 mm, universal - fits all accepted notes |
| Power supply voltage | 24 Volts DC -10% +20% |
| Interface | USB |
| Protocol | BNR-XFS, multiple Software Development Kits available |
| Mounting | 3x M5 holes on either side or 4x M4 holes on the bottom |
| Bezels | Plastic or metal (high security, flush mount) |
| Software updates | Remote software updates for note sets and firmware |
KEY BENEFITS OF THE BNR ADVANCE:

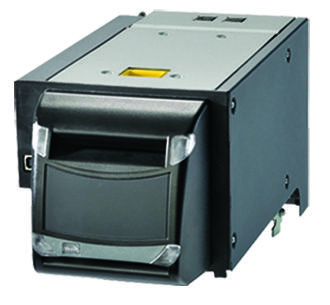

MAIN MODULE
- ADA / DDA compliant customer zone
- Anti-card insertion device deters blockages
- Shortens transaction time
- Dedicated full multi-note escrow for faster transaction
- Driven outlet shutter and retract function deters fraudulent manipulations

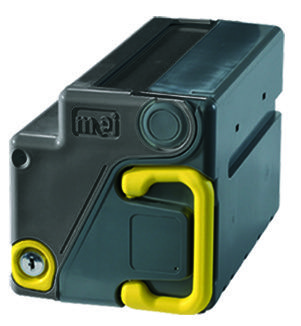

CASHBOXES
- Capacities aligned to operational realities
- Secure storage of non-recycled notes
- Allows traceability of cash movement
- Lock prevents access for unauthorised persons
- Rearming system tracks cashbox and prevents reinsertion

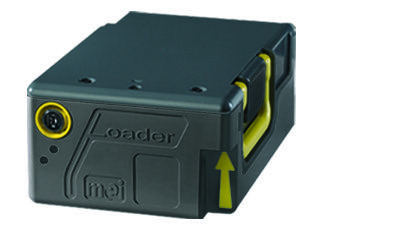

LOADER CASSETTE
- Significant float reduction
- Fast and secure way to load note recyclers
- Maximizes machine uptime
- Provides capacity for negative cash flow
- Allows traceability of cash movement

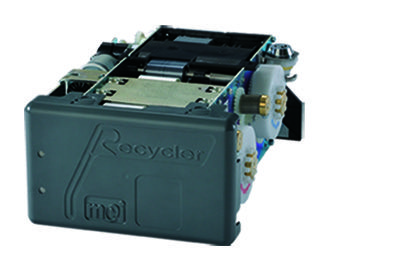

RECYCLERS
- Spiral drum recycling technology for universal notes
- Maximizes machine uptime
- Configurable for ongoing requirements
- Allows traceability of cash movement
- Two independent drums per module for compact recycling
