BNR/BNF Advance

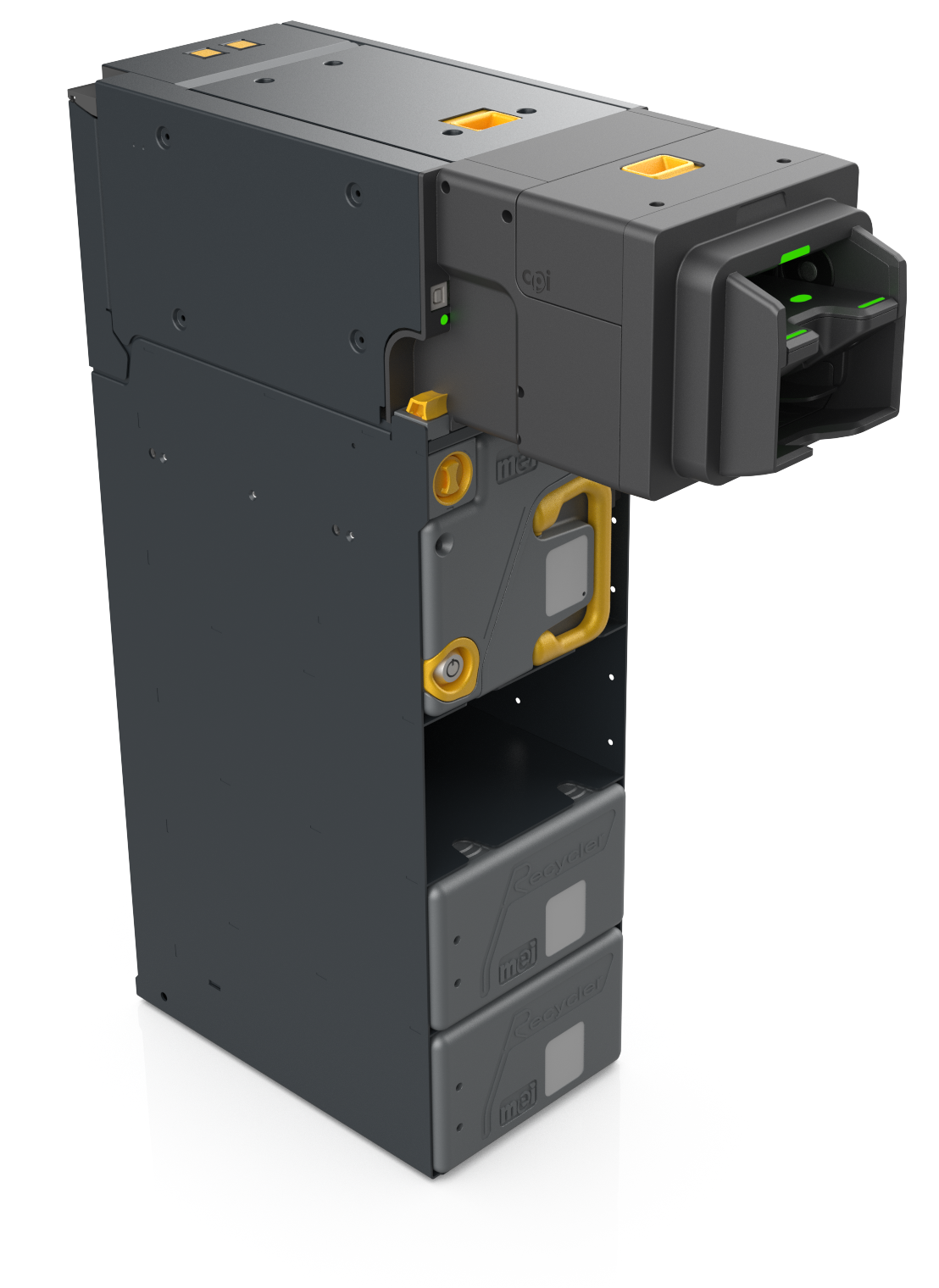

BNR/BNF Advance™ Banknote Recycler
Designed with the needs of retailers in mind, the CPI Bank Note
Recycler/Bunch Note Feeder (BNR/BNF) removes the need for
time-consuming note-by-note replenishment, providing a user-friendly
experience. The BNR/BNF’s adjustable input accepts up to 50 notes at
once, providing both customers and retailers with improved speed and
efficiency in the note feeding process.
The BNR/BNF expands on the strong performance of the standard
BNR, giving users the ability to insert more notes at a time than ever
before. Touting a sleek and streamlined design, the BNR/BNF is the
most compact note recycler on the market, allowing for effortless
integration into any retail space and freeing up valuable real estate for
other essential equipment or merchandise
MAXIMUM UPTIME, UTMOST EFFICIENCY:
- Fast Replenishment – BNR Bunch Note Feeder allows up to 50 notes insertion in less than 25 sec, reducing replenishment time and expediting staff integration with the device. Based on the individual retailer’s needs, the input magnitude can be adjusted allowing for the utmost flexibility.
- Debris Resistant – To minimize debris, the BNR/BNF remains closed when idle and opens the minimum amount for any given customer payment. This results in less debris accumulating in the machine due to foreign objects.
- Easy Jam Clearance – In just a few simple steps, jams can easily be cleared from the BNR/BNF by any staff member. Because of the device’s simplicity and reliability, minimal staff training is required and the need for service calls is significantly reduced.
- Compact Design – The BNR/BNF’s design makes it the most compact note recycler on the market without sacrificing quality. This allows for more flexibility in cabinet design and opens up store’s space for other essential equipment. The BNR/BNF can be neatly positioned alongside CPI's Compact Coin Recycler (CCR), enabling customers to build smaller systems and optimize cabinet space.
BNR/BNF Advance Technical Specification
| Product Versions | BNR/BNF Advance |
|---|---|
| Interface | Connection to host machine via USB |
| Voltage | 24 Volts DC -10% +20% |
| Current Consumption | Idle: 0.6 Amps, Peak: Max 11 Amp (@ 21.6V or 5°C) |
| Protocol | BNR-XFS, Windows, Linux device API, JavaPOS, uAPI |
| Compliance | CE, UL, RoHS |
| Dimensions (W x D x H mm) | BNR4S/3M - 165 x 432 x 604 BNR3S/2M - 165 x 432 x 505 |
| Weight | Up to 27 kg |
| Operating Environment | Operating: 5°C to 45°C Storage: -40°C to 70°C Relative humidity: 5–95% RH |
| BNF Input | Up to 50 notes (2 notes/sec) |
| Notes Dispense | Bundle (up to 15 notes) |
| Currency Support | Worldwide currencies |
| Denominations Recycled | Up to 3 modules / 6 denominations / 30 & 60 note capacity per module |
| Optional Loader Cassette | Yes - 250 notes |
| Cashbox Capacities | 600 / 1,400 notes |
| Software Updates | Remote software updates for note sets, firmware and configurations |
