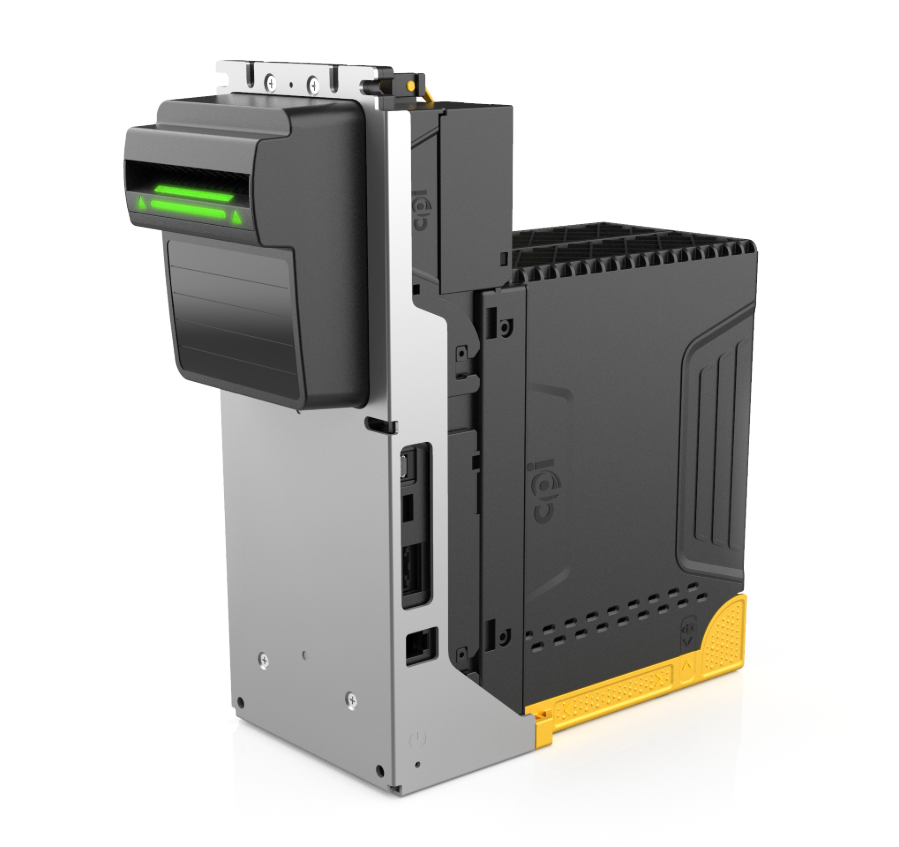

RS-900 Series
RS-900 Series THE NEXT GENERATION BACKLOAD VALIDATOR
Designed to maximize machine uptime and
reduce service costs, CPI presents the RS-900
series backload note validator. Built with the
reliability and security of CPI engineering, and
backed by a reliable service network, RS-900
promises a safer payment experience and overall
lower cost of ownership.
- CPI’s sensor platform, with full-width note coverage, delivers industry-leading counterfeit detection for superior protection against fraudulent notes
- Machine uptime is maximized with an enhanced cash box rated for street grade notes to reduce unplanned cash box-collection service calls
- Single platform, global currency support maximizes international integration opportunities for reduced R&D costs
- Durable, drop-proof cashbox eliminates in-transit damage, allowing for streamlined spare parts inventory and a lower total cost of ownership
- USB connectivity promotes faster at-machine update and data collection time for easy, seamless configurations and reduced service time
- With CPI Synq™ Bluetooth connectivity, easily configure, diagnose, and troubleshoot device problems via mobile phone using the Simplifi™ mobile app
Gallery
RS-900 Series Specifications & Variants
| Specifications | |
|---|---|
| Acceptance Rate | 95% or greater 1st time |
| Interfaces | MDB, Sleep, CCNET, CCTalk |
| Bill Length | 120mm - 161mm |
| Operating Voltage |
34V DC 0.6A (MDB) 24V DC 0.9A (MDB) 12V DC 1.0A (MDB Sleep) 12V DC 0.9A (CCTalk) 12V DC 1.0A (CCNET) |
| Power Consumption |
34V - Stand-by: <0.2A, Operating: <0.6A 24V - Stand-by: <0.3A, Operating: <0.9A 12V - Stand-by: <0.5A, Operating: <1.0A |
| Operating Temperature | -15°C ~ +60°C |
| Insulation Resistance | 20MΩ or more |
| Weight | Approx. 1.0 kg |
| Dimension (W x D x H) | 104 x 129 x 250 (MDB 600) |
| Configurations and Variants | |
| Currency Support | Worldwide currencies |
| Fixed-Width Bills | 62 - 70 mm |
| Multi-Width Bills | 62 - 77 mm |
| Cash Box Options | Secured Standard: 600 notes Large: 1000 notes |
